Pixell worlds largest Datapath distributor. Pixell sells to dealers, resellers, system integrators and end users. Pixell rents x4 units. Buy it now here. Capture Cards, Frame Grabber, Video Processors rental dealer purchase overnight
USD $1929.00 Status: In-Stock
19" rack chassis not included

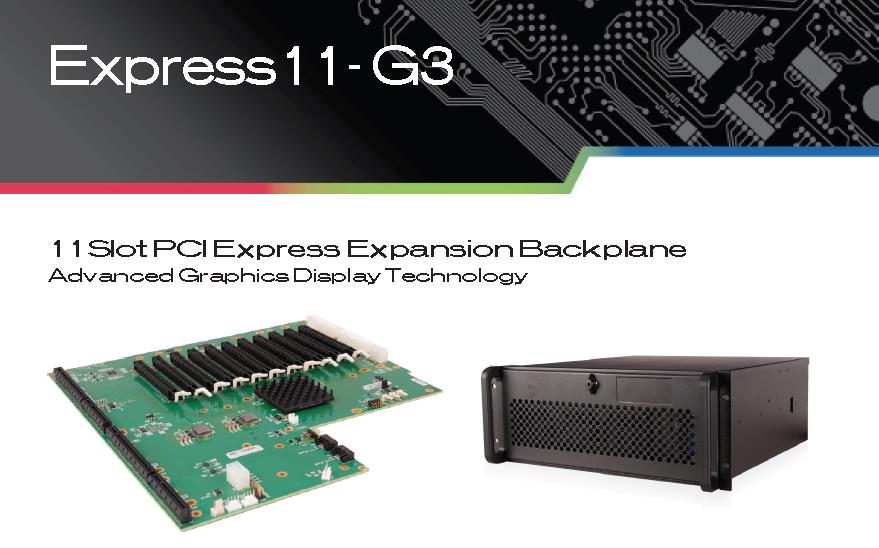

The Datapath Express11-G3 backplane provides 11 x8 lane PCI Express slots, all implemented as x16 physical connectors. They can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC.

This backplane uses advanced PCI Express 3.0 switches to create high bandwidth that connects up to 11 PCI express plug in cards into a host system.

The Datapath Express11-G3 uses PCIe Gen.3 switches to provide each slot with up to 8GB/s bi-directional bandwidth.

Using multiple Express11-G3 backplanes configured in a daisy chain expansion mode allows construction of large systems. The Express11-G3 can also be expanded using a star configuration. This configuration enables the construction of very large systems supporting low latency with a high number of slots.
All x8 PCI Express slots in the master chassis (containing the SBC) are populated with a HLink-G3 card. Each HLink-G3 is then connected to an expansion chassis using an ExCable-G3 and SLink-G3 card. This configuration provides a high number of available PCI Express slots supporting low latency.

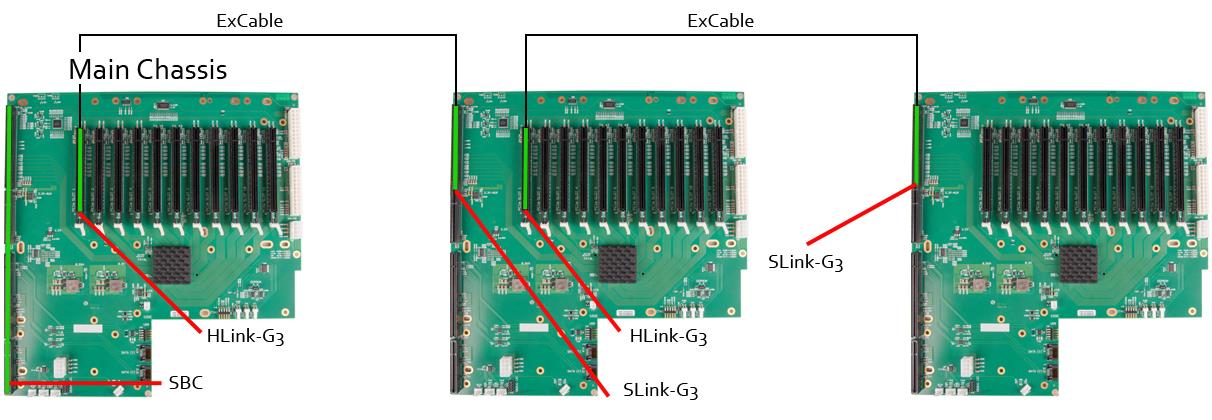

Connecting Multiple Express11-G3 Backplanes - Daisy Chain Configuration
Daisy chain the main chassis to a maximum of five expansion chassis providing up to 51 PCI Express expansion slots

Max Power (without SBC) 25W
Power requirements

Max current at +3.3V <0.5A

Max current at +12V <0.5A

Max current at +5V <4A
Form factor

PICMG1.3 Host SBC interface (x8 PCIe)

11 x PCI Express (x8) expansion slot

2 x 24 pin power connectors

2 x 8 pin AUX power connectors
SATA ports 2 x ports via PICMG1.3 interface
USB ports 2 x ports via PICMG1.3 interface, USB 2.0
Operating temperature 0 to 35 deg C/ 32 to 95 deg F
Storage temperature -20  to 70 deg C/ -4 to 158 deg F
Relative humidity 5% to 90% non-condensing

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
Datapath Express11-G3 Backplane
